PSTAT 5A: Midterm 1 Review

Overview of Weeks 1 through 3

Ethan P. Marzban

2023-04-20

Descriptive Statistics

Structure of Data

  • We started by talking about the structure of data.
  • We were exposed to the notion of a data matrix, which is comprised of a series of observational units (i.e. rows) on a series of variables (i.e. columns)
  • For instance, the palmerpenguins data matrix is:
   species island    bill_length_mm bill_depth_mm flipper_length_mm body_mass_g
 1 Adelie  Torgersen           39.1          18.7               181        3750
 2 Adelie  Torgersen           39.5          17.4               186        3800
 3 Adelie  Torgersen           40.3          18                 195        3250
 4 Adelie  Torgersen           NA            NA                  NA          NA
 5 Adelie  Torgersen           36.7          19.3               193        3450
 6 Adelie  Torgersen           39.3          20.6               190        3650
 7 Adelie  Torgersen           38.9          17.8               181        3625
 8 Adelie  Torgersen           39.2          19.6               195        4675
 9 Adelie  Torgersen           34.1          18.1               193        3475
10 Adelie  Torgersen           42            20.2               190        4250
# ℹ 334 more rows
# ℹ 2 more variables: sex <fct>, year <int>

Structure of Data

  • Of course, the reader is not expected to a priori know what the variables in a dataset represent; as such, most datasets come equipped with a data dictionary that lists out the variables included in the dataset along with a brief description of each.
Variable Description
species The species of penguin (either Adelie, Chinstrap, or Gentoo)
island The island on which the penguin was found (either Biscoe, Dream, or Torgersen)
bill_length_mm The length (millimeters) of the penguin’s bill
bill_depth_mm The depth (in millimeters) of the penguin’s bill
flipper_length_mm The length (in millimeters) of the penguin’s flipper
body_mass_g The mass (in grams) of the penguin
sex The sex of the penguin (either Male or Female)
year The year in which the penguin was observed

Classification of Variables

  • We also saw that variables fall into two main types: numerical and categorical.
    • Remember that it is not enough to simply check whether our data is comprised of numbers, as categorical data can be encoded using numbers (e.g. months in a year).
    • Rather, we should check whether it makes interpretable sense to add two elements in our variable (e.g. 1 + 2 is 3, whereas Jan + Feb is not March).

Classification of Variables

  • Within numerical data, we have a further subdivision into discrete and continuous variables.

    • The set of possible values of a discrete variable has jumps, whereas the set possible values of a continuous variable has no jumps.

  • Within categorical data, we have a further subdivision into ordinal and nominal variables.

    • Ordinal variables have a natural ordering (e.g. letter grades, months of the year, etc.) whereas nominal variables do not (e.g. favorite color)

Full Classification Scheme

data_classification cluster_main cluster_0 cluster_1 cluster_2 cluster_3 Data Variable numerical Numerical Data->numerical categorical Categorical Data->categorical continuous Continuous numerical->continuous discrete Discrete numerical->discrete nominal Nominal categorical->nominal ordinal Ordinal categorical->ordinal

Visualization

  • Once we have classified a variable as being either numerical or categorical, we can ask ourselves: how can we best visualize this variable?

  • For categorical data, we use a bargraph and for numerical data we use either a histogram or a boxplot.

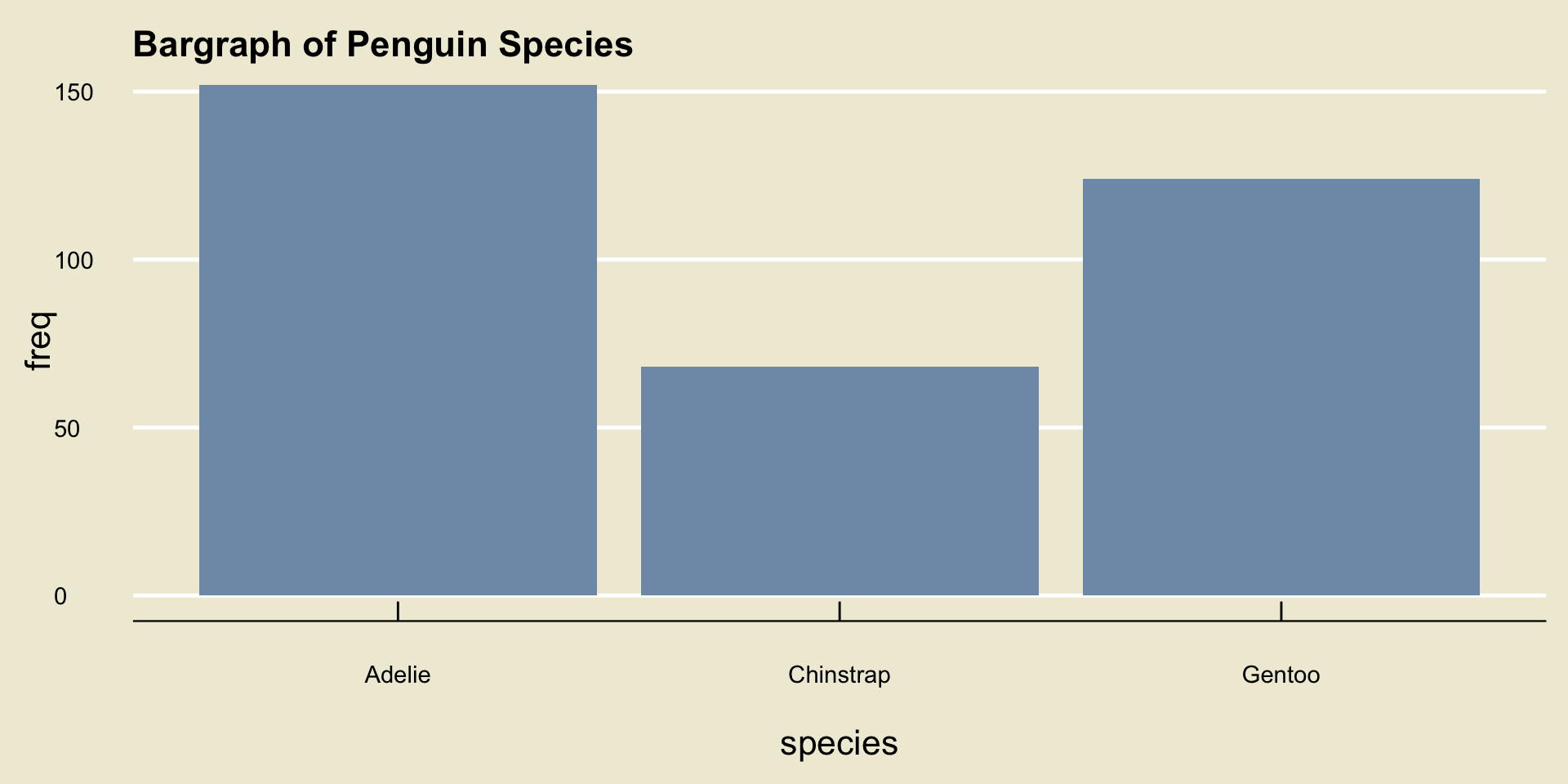

Bargraph

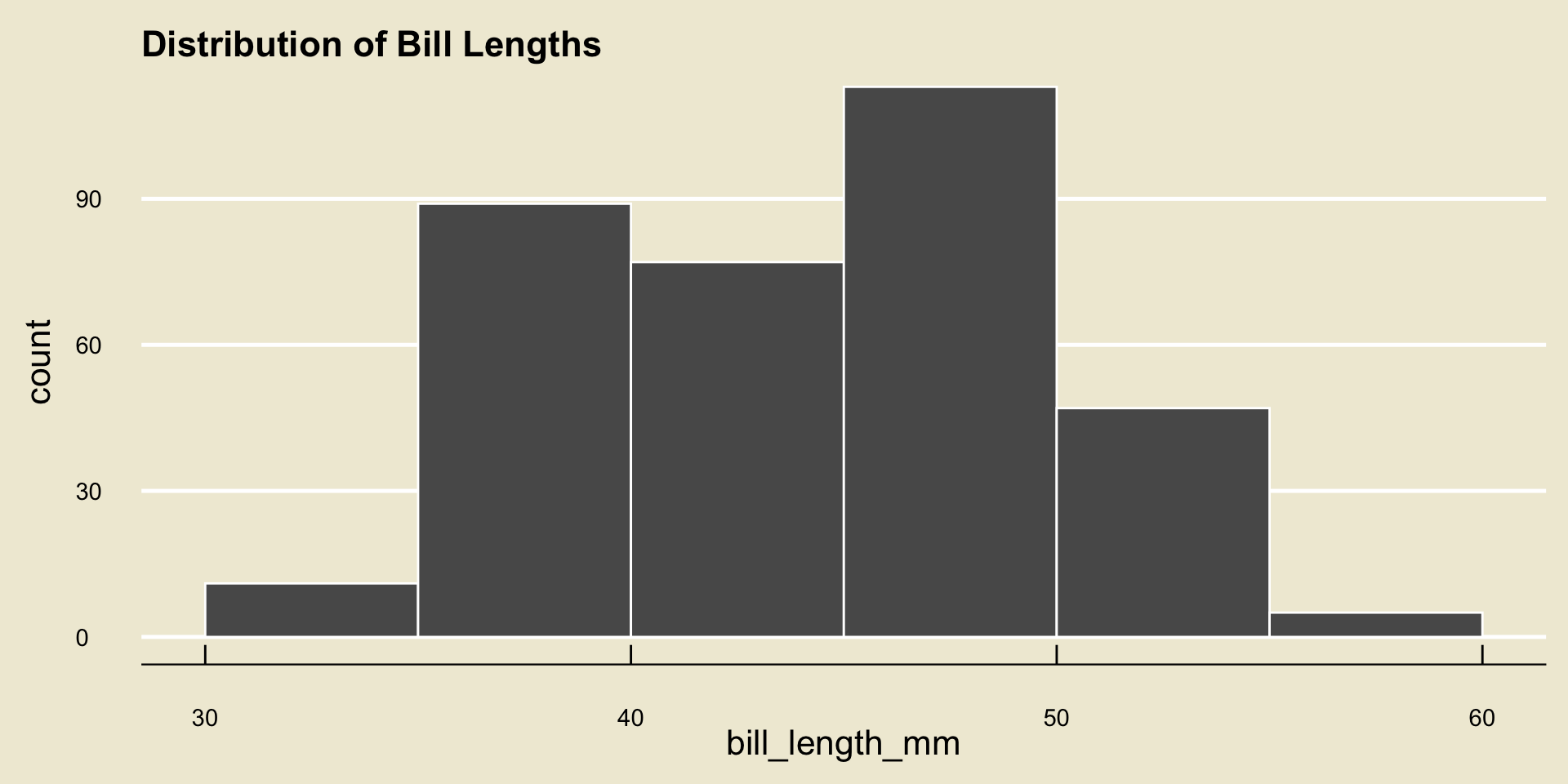

Histogram

  • Remember the importance of binwidth: demo

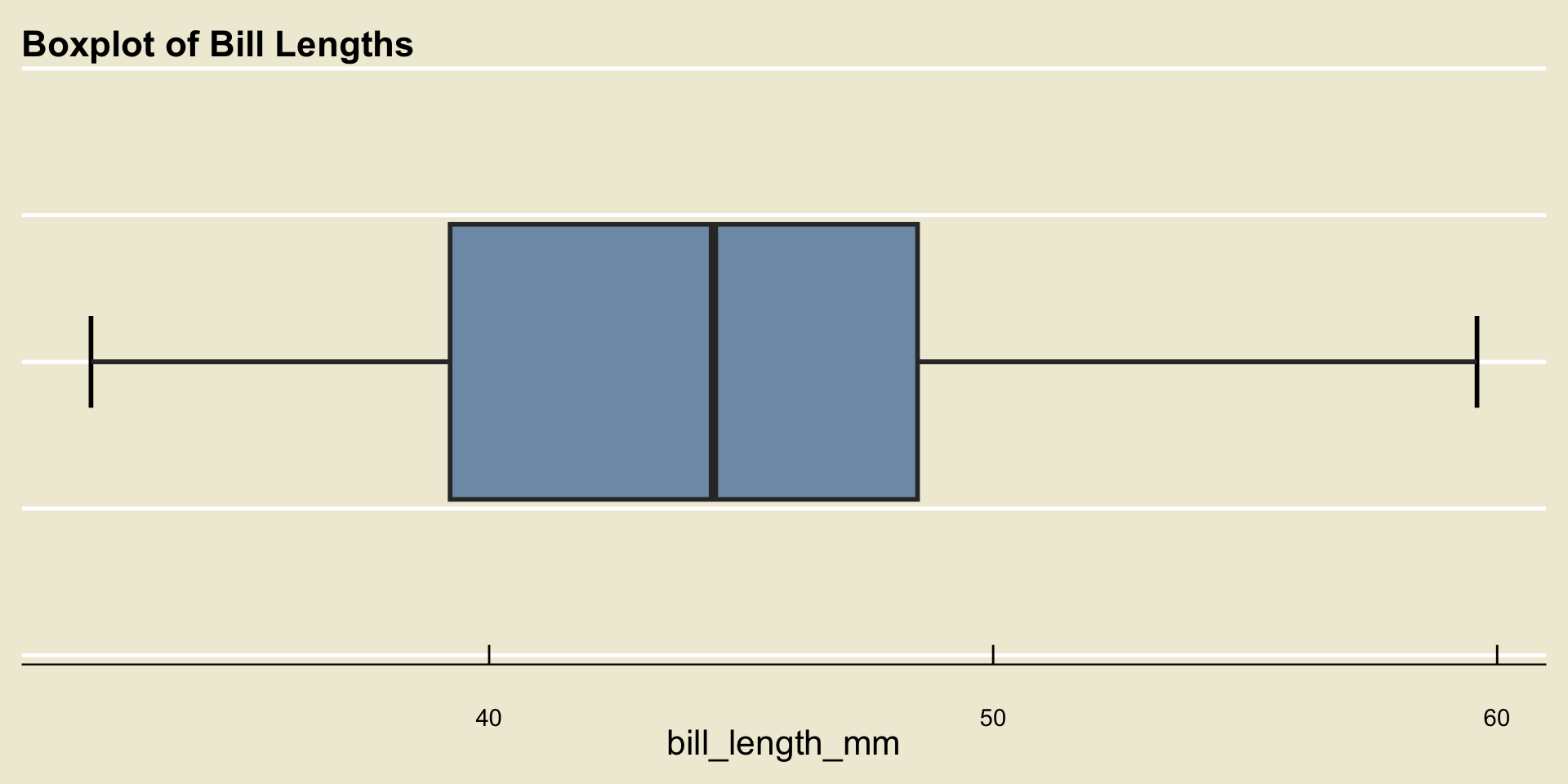

Boxplot

  • Remember that the whiskers are never allowed to extend beyond 1.5 times the IQR (and recall that the IQR is just the width of the box).

Numerical Summaries

  • We can also produce numerical summaries of numerical variables.
  • Measures of Central Tendency are different quantities that summarize the “center” of a variable
    • There are two main measures of central tendency we discussed: the mean and the median.
  • The mean (or arithmetic mean) is a sort of “balancing point”:

\[ \overline{x} = \frac{1}{n} \sum_{i=1}^{n} x_i \]

Spread

  • Another way we could summarize a numerical dataset (i.e. a dataset containing only one variable, one that is numerical) is to describe how “spread out” the values are.

  • The variance is a sort of “average distance of points to the mean”:

\[ s_x^2 = \frac{1}{n - 1} \sum_{i=1}^{n} (x_i - \overline{x})^2 \]

  • The standard deviation is just the square root of the variance

Spread

  • The interquartile range (IQR) is another measure of spread: \[ \mathrm{IQR} = Q_3 - Q_1 \] where \(Q_1\) and \(Q_3\) denote the first and third quartiles, respectively.

    • Recall that the \(p\)th percentile of a dataset \(X\) is the value \(\pi_{x, \ 0.5}\) such that p% of observations lie to the left of (i.e. are less than) \(\pi_{x, \ 0.5}\).

    • \(Q_1\) is the 25th percentile and \(Q_3\) is the 75th percentile

  • The third measure of spread we discussed is the range: \[ \mathrm{range}(X) = \max\{x_1, \cdots, x_n\} - \min\{x_1, \ \cdots, \ x_n\} \]

5-Number Summary

  • Recall the five number summary, which contains:

    1. The minimum
    2. The first quartile
    3. The median
    4. The third quartile
    5. The maximum

  • Also recall how all of these quantities appear on a boxplot!

Comparisons of Variables

  • If we want to compare two variables, there are three cases to consider:
    • Numerical vs. Numerical
    • Numerical vs. Categorical
    • Categorical vs. Categorical
  • When comparing two numerical variables, we use a scatterplot
  • When comparing a numerical variable to a categorical variable, we use a side-by-side boxplot
  • When comparing two categorical variables, we construct a contingency table

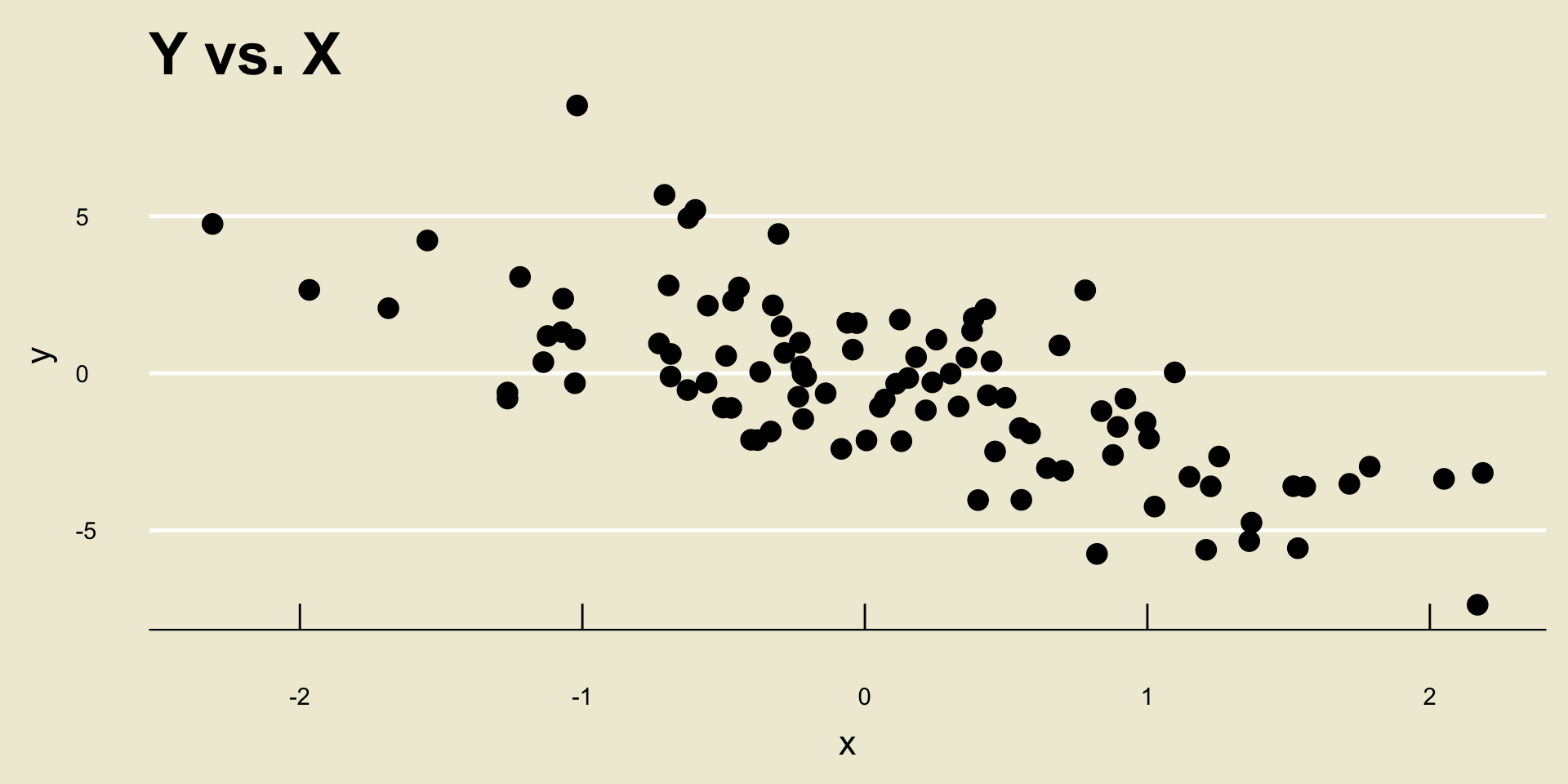

  • Linear Negative Trend:

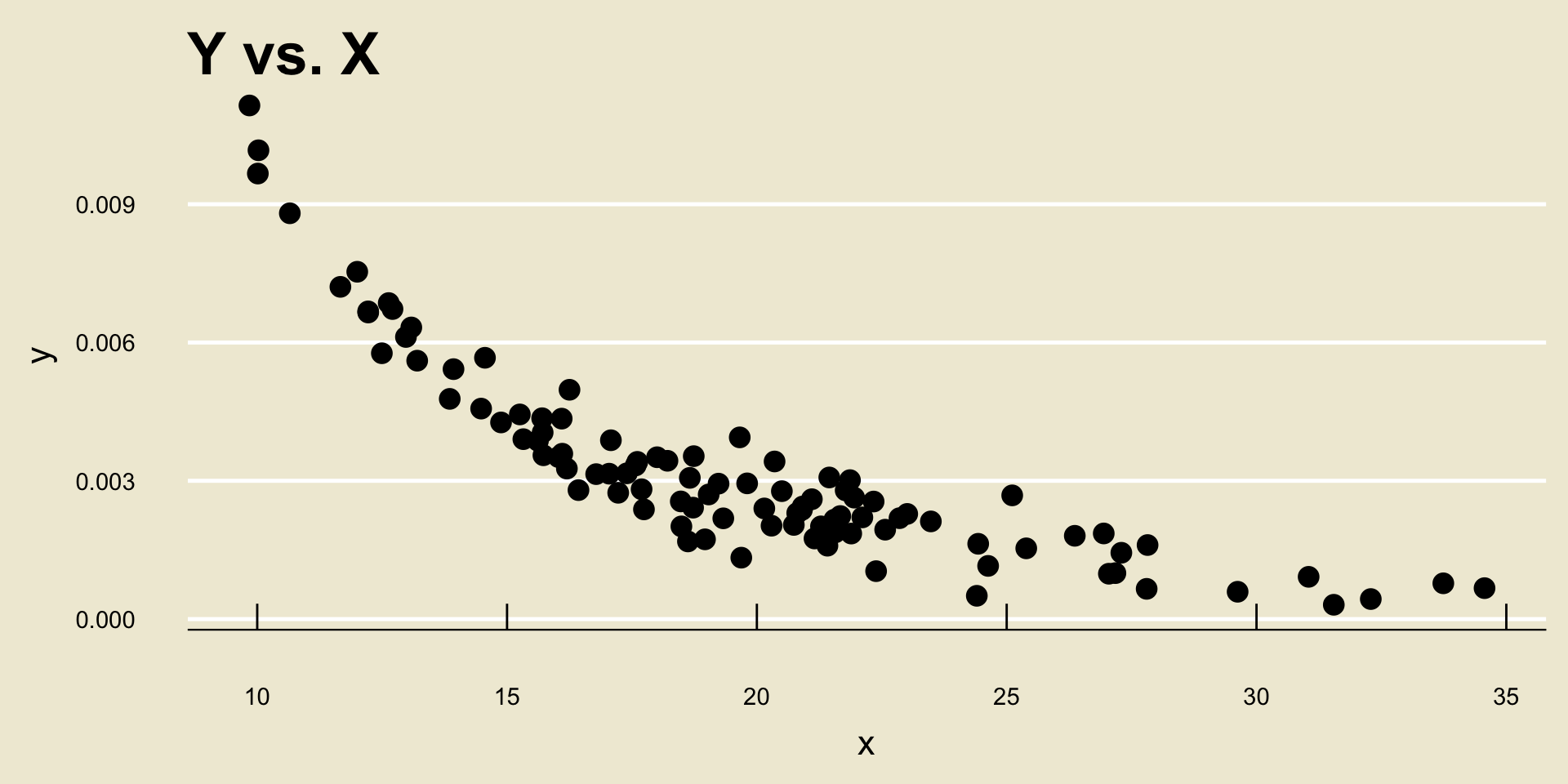

  • Nonlinear Negative Trend:

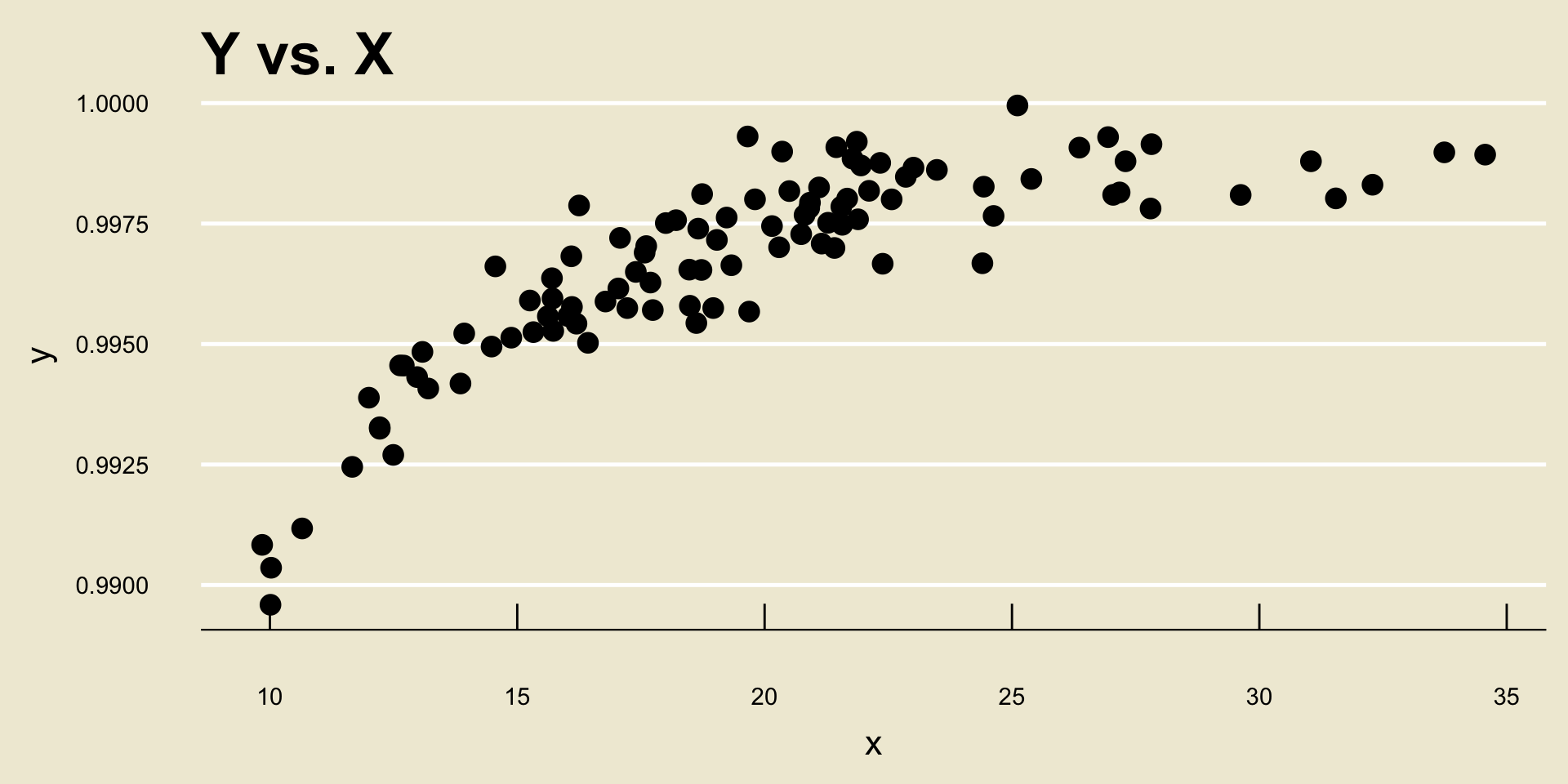

  • Nonlinear Positive Trend:

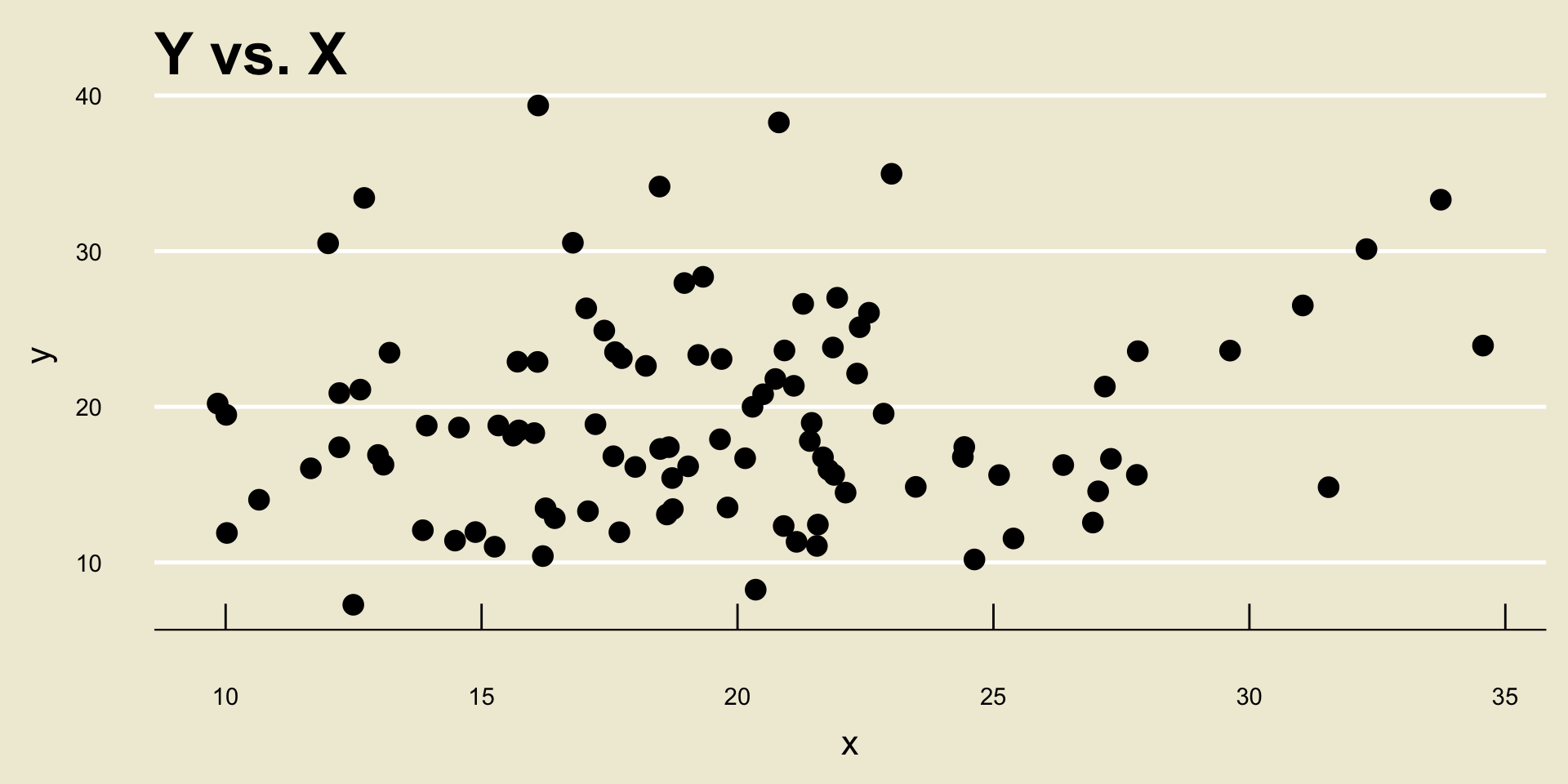

  • No Discernable Trend

Probability

Basics of Probability

  • Probability is, in many ways, the language of uncertainty.
  • An experiment is any procedure we can repeat an infinite number of times, where each time we repeat the procedure the same fixed set of “things” can occur
    • These “things” are called outcomes
    • The outcome space, denoted \(\Omega\), is the set containing all outcomes associated with a particular experiment.
    • Events are just subset of the outcome space.
  • We can express outcome spaces using tables or trees.

Probability

  • Probability is a function that acts on events
    • Notationally: \(\mathbb{P}(E)\)
  • There are two main approaches to computing probabilities:
    • The Classical Aproach: if outcomes are equally likely, then for any event \(E\) \[ \mathbb{P}(E) = \frac{\#(E)}{\#(\Omega)} \]
    • The long-run [relative] frequency approach: repeat the experiment an infinite number of times and define \(\mathbb{P}(E)\) to be the proportion of times \(E\) occurs

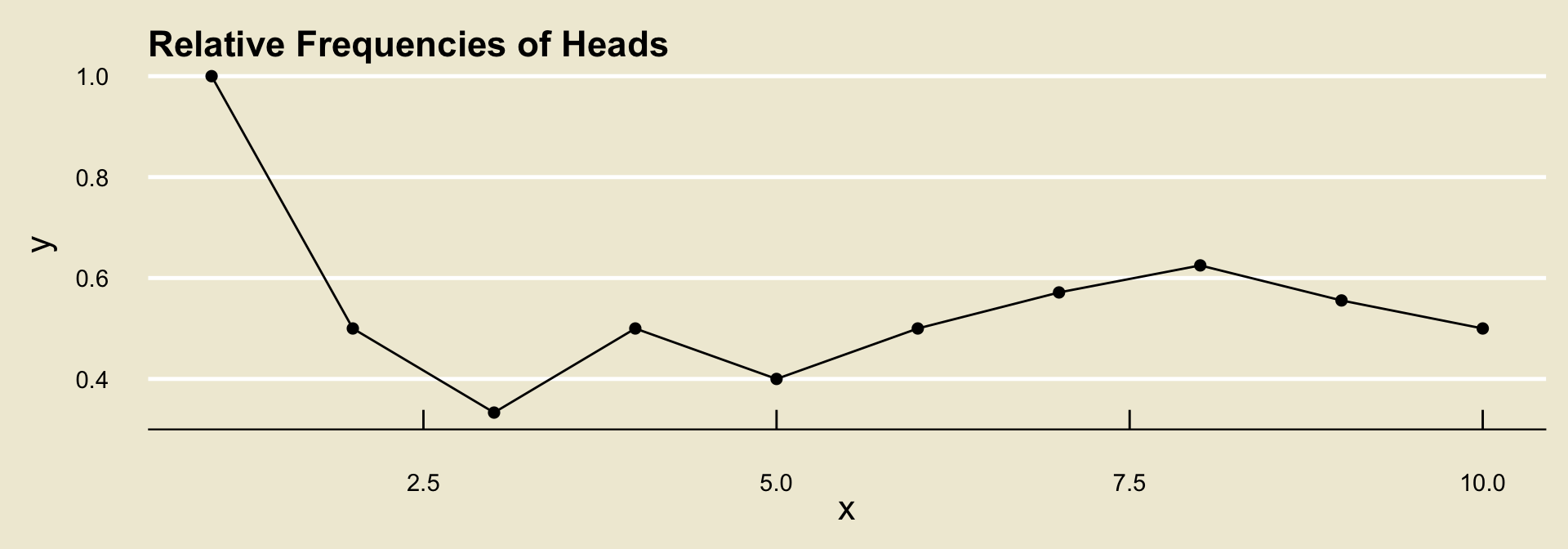

Long-Run Frequencies Example

Toss 1 2 3 4 5 6 7 8 9 10
Outcome H T T H T H H H T T
Raw freq. of H 1 1 1 2 2 3 4 5 5 5
Rel. freq of H 1/1 1/2 1/3 2/4 2/5 3/6 4/7 5/8 5/9 5/10

Set Operations

  • Given two events \(E\) and \(F\), there are several operations we can perform:
    • Complement: \(E^\complement\); denotes “not \(E\)”
    • Union: \(E \cup F\); denotes \(E\) or \(F\) (or both)
    • Intersection: \(E \cap F\); denotes \(E\) and \(F\)

Venn Diagrams


\(A^\complement\)
(complement)


\(A \cap B\)
(intersection)


\(A \cup B\)
(union)

Axioms of Probability

  1. \(\mathbb{P}(E) \geq 0\) for any event \(E\)

  2. \(\mathbb{P}(\Omega) = 1\)

  3. For disjoint events \(E\) and \(F\) (i.e. for \(E \cap F = \varnothing\)), \(\mathbb{P}(E \cup F) = \mathbb{P}(E) + \mathbb{P}(F)\)

Probability Rules

  • Probability of the Empty Set: \(\mathbb{P}(\varnothing) = 0\)

  • Complement Rule: \(\mathbb{P}(E^\complement) = 1 - \mathbb{P}(E)\)

  • Addition Rule: \(\mathbb{P}(E \cup F) = \mathbb{P}(E) + \mathbb{P}(F) - \mathbb{P}(E \cap F)\)

Conditional Probabilities

  • \(\mathbb{P}(E \mid F)\) denotes an “updating” of our beliefs on \(E\) in the presence of \(F\))

    • Definition: \(\displaystyle \mathbb{P}(E \mid F) = \frac{\mathbb{P}(E \cap F)}{\mathbb{P}(F)}\), provided \(\mathbb{P}(F) \neq 0\)

  • Multiplication Rule: \(\mathbb{P}(E \cap F) = \mathbb{P}(E \mid F) \cdot \mathbb{P}(F) = \mathbb{P}(F \mid E) \cdot \mathbb{P}(E)\)

  • Bayes’ Rule: \(\displaystyle \mathbb{P}(E \mid F) = \frac{\mathbb{P}(F \mid E) \cdot \mathbb{P}(E)}{\mathbb{P}(F)}\)


  • Independence asserts that \(\mathbb{P}(E \mid F) = \mathbb{P}(E)\), which in turn implies \(\mathbb{P}(F \mid E) = \mathbb{P}(F)\) and \(\mathbb{P}(E \cap F) = \mathbb{P}(E) \cdot \mathbb{P}(F)\)
    • Note that \(\mathbb{P}(E \cap F) = \mathbb{P}(E) \cdot \mathbb{P}(F)\) only when \(E\) and \(F\) are independent! Otherwise, you have to compute \(\mathbb{P}(E \cap F)\) using the multiplication rule.
    • The interpretation of independence is that the two events “do not affect each other”

Counting

  • Don’t forget about counting!

Programming

  • Don’t forget about programming!
